Description:

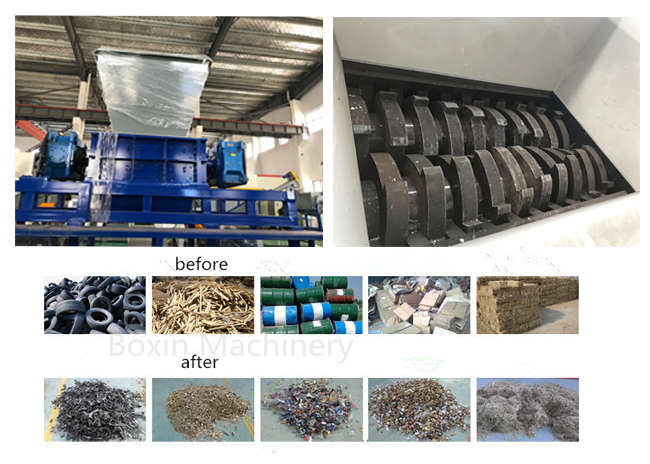

Double Shaft Shredder with loading hoppers, equipped with high quality cutters with low rotation speed for a lower energy consumption and noise reduction. It incorporates two counter-rotating shafts that intermesh with each other(2 shafts with sharp elements constituted by sharp-corners disks provided with hooks); Every hook has the task to hook the product and drive-it by the action of the two counter-rotating shafts). The material is powerfully torn and shredded by the talons of the cuttings discs. Specially designed rotor makes the shredder be extremely wear resistant.
Double Shaft Shredder Blades(According to different materials choose different blades ):
Technical Data for double shaft shredder :
| Model | ST-800 | ST-1200 |
| Capacity(T/hour) | 0.8-2 | 2~4 |
| Specification of feeding(mm) | ≤800 | ≤1200 |
| Specification of discharging(mm) | ≤50x50 | ≤60x60 |
| Main Motor(Kw) | 37 | 45x2 |
| Discharging Motor (Kw) | 3 | 4 |
| Cutter rotate speed(r/min) | 16 | 10 |
| Screener rotate speed | 6 | 4 |
Technical Features:
1. Our shredders can be employed as either a primary or secondary shredder and can be seen working anywhere from the waste management company to biofuel producers;
2. Dual shafted, slow-speed, high-torque waste shredder with hardened steel cutters;
3. The two cutting rotors powerfully grab the feed material, and no matter the feed material is large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces;
4. Double shaft shredder is able to process a number of different materials; shredder is designed with a powerful engine, long working length and aggressive input, Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you using forklift truck to feed.
5. Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high quality steel, suitable for shredding tough materials and for extra long life;
6. Depending on requirement, these discs (blades) are available in a wide range of quantities, qualities and shapes with the new double-shaft shredder;
7. Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
8.Cutters removal and replacement can be carried out safely and simply.
9. Our shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost Effective Precision, High Radial Loads.
10. Cooler system(optional) can maintain the temperature for continuous operation.
